Aluminum Electrical Enclosures

Die casting electronic enclosure China

Quality OEM die casting service
Die casting electronic enclosure China
Die casting electronic enclosure China
Die casting electronic enclosure China
Die casting electronic enclosure China
Die casting electronic enclosure China

Description

Reviews

Specifications

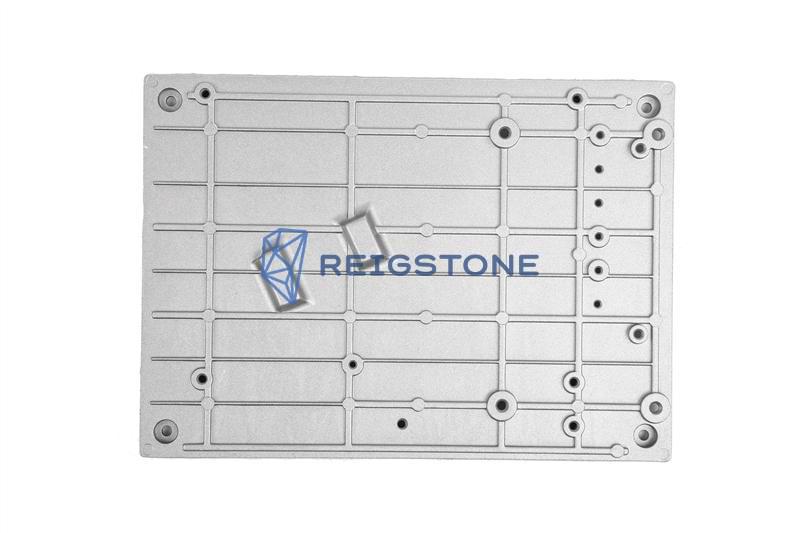

Item: Die casting electronic enclosure China

Weight: 0.21kg

Size: L290xW210xH30mm

Material: ADC-12

Tooling style: 2 cavities

Tolerance grade of casting: CT-5(ISO-8062)

Die casting machine: 280TONS

Tolerance grade of machined feature: ISO-2768 mk

Machining equipment: CNC machining &tapping

Surface finish: Shot blasting

Application: Electronics

Exported country: France

Delivery: 30000pcs/30days

Features of Reigstone die casting

Quite compact

Enough compact can make the part stronger on the aspect of mechanical properties.Instead of your other idea maybe with steel or other heavy metals, save cost on material and transporting.

Smooth surface

Smooth and flat surface makes appearance looks beautiful, and good texture.

Class 2-3 for die casting surface we can guarantee, following NADCA standard.

Precise dimension tolerance

Our as-cast usually can achieve CT5-CT4 grade, obviously it can reduce some machining processes and cost with such accurate casting dimension tolerance.

No or very few small porosities

It can help you to think various processes to develop project, when you don’t need to consider leaking,lighten your load and save your extra cost.



Reigstone die Casting service

Ø Tooling design:

Reverse engineering

3D building

Cavity filling simulation

35days for normal tooling manufacturing, specific case depends on dimension and complexity of the part.



Ø Die casting

Material: ADC-12/ADC-10/A380/383/AlSi10Mg/others

Casting grade: CT-5 -CT4, following ISO-8062

Casting machine type: 200/280/400/630/800/1250, by LK, total 7 sets.

Casting weight: 20g-12kgs

Projected area: max 700*500*400mm



Ø Secondary CNC machining

GD&T grade: Limited 0.003mm

Machining equipment:

16 CNC machining centers, by Haas, USA and UTIG, South Korea.

14 CNC Lathe,

2 Automated turning centers, by Takisawa, Japan

20 Bench Drills

20 Threading machines.



Ø Surface finish:

plating/electrophoresis/powder coating/painting/anodizing/ polishing/sand blasting/shot blasting



Ø Diversified packaging: carton/plywood pallet/ plywood pallet box, customized packaging solution is also available.



Ø On-time delivery: 97% on-time delivery rate was our last year record, we are well ready to satisfy you with much faster service in coming new orders.



For more information about our aluminum die casting process, please click here aluminum die casting.

Covered industries:

- Lighting

- Valve body

- Automotive parts

- Gearbox housing

- Motoring housing

- Electronic enclosure

- Tools & hardware

- Construction

For more information about industries involved, please click here Industries.

General terms and conditions

Trade terms: Incoterms2010 FOB/EXW/CIF

Payment terms: T/T, L/C, Western union.

Delivery ways: by air/sea/railway.

Loading port: Ningbo/Shanghai, or other ports.

Lead time: 30 days for a production cycle.
